Coaches:

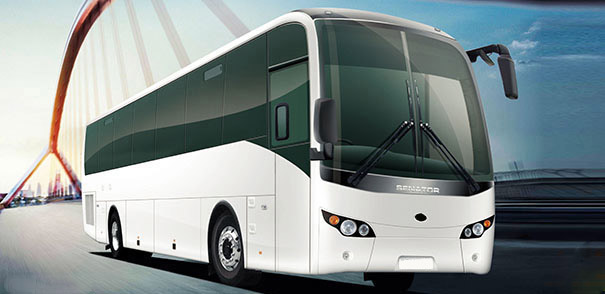

JXK6127DR
Safety, practicality and innovation combine to form this model a well-equipped entry-level vehicle with many standard features at a very competitive price, this value-packed model comes in variants from 41-57
|
CHASSIS
|
|
DIMENSIONS
|
12360 x 2500 x 3670
|
|
ENGINE
|
CUMMINS ISBE5 300 , 6 cylinders | 6.7 litres | 6 inline | 4 stroke | water cooling |
direct injection | turbocharged with intercooler | diesel engine
*Option – Cummins ISLE 320 – 91300Nm (959lb-ft)1100-1500rpm
|
|
TRANSMISSION
|
ALLISON T350R 6 Speed Automatic Transmission with Retarder
|
|
SUSPENSION
|
Air suspension 2+4 bellows, front and rear sway bars | Double coin tubeless (7)
|
|
BRAKES
|
Wabco ABS, dual circuit air system disc brakes
|
|
TYRES & WHEELS
|
Alcoa polished rims 8.25x22.5 Tyres 295/80r 22.5
|
|
FULE CAPACITY
|
400litres located behind front axle With twin fill points
|
|
ALTERNATOR
|
28v 150a
|
|
BATTERIES
|
12v 180ah x 2
|
|
GVM
|
18,000 kg
|
|
MAX. SPEED
|
100km (limited)
|
|
BODY & EQUIPMENT
|
|
BODY & FRAME
|
Fibreglass front and rear header panels
Full Fibreglass roof and stretch panels | aluminium lower skirt paneling |
Australian Supagal steel frame
|
|
AIR CONDITIONING
|
Kingtec Heat /Cool with Bitzer compressor
Options: Eberspacher Heat/Cool with Bitzer compressor
Thermo King KRS-1004 Heat/Cool with X430 compressor
|
|
LUGGAGE COMPARTMENTS
|
4 door full through underfloor luggage bins
Internal luggage racks
|
|
ELECTRICAL
|
Narva Exterior clearance and marker lights
Thoreb Multiplex wiring system
|
|
FEATURES
|
Dark tint saloon glass | Quick release lift up wheel arches |
Cruise Control | Radio & PA | Electric front drivers blinds | Roof air intake
*Option – Sliding Windows
|
|
SEATING
|
49-57 3 point safety belt passenger seats complying with ADR 68 |
KAB air ride drivers seat with automatic reset | 3 point safety belt
Options: 53 or 59 Metropolitan passenger seats
|
The specification varies to the requirement of actual order, the drivetrain is subject to change upon requests.
