Coaches:

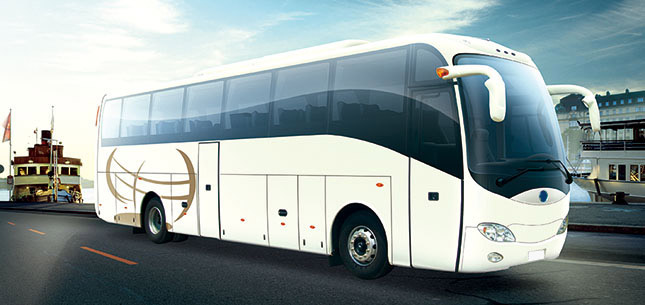

JXK6128CR
The entire vehicle using lightweight full load U shaped girder design. The molding design, makes whole body more sealing, anticorrosive, and water and dust proof The entire vehicle imported ICI environmental pearl paint, nicer and environmental friendly.
|
CHASSIS
|
|
DIMENSIONS
|
11950 x 2550 x 3820
|
|
ENGINE
|
YC6L350-20
|
|
TRANSMISSION
|
QJ 1506 manual 6 speed
|
|
SUSPENSION
|
Air suspension with ECAS of 2 + 4 air bellows︱raise︱lower and kneel
|
|
BRAKES
|
Wabco ABS︱dual circuit air system︱Drum brake
|
|
TYRES & WHEELS
|
295/80R22.5 Double Coin Tubeless︱Standard Steel Rims
|
|
FULE CAPACITY
|
600L
|
|
ALTERNATOR
|
28V 140A
|
|
BATTERIES
|
12v-200ah x 2
|
|
GVM
|
19500KG
|
|
MAX. SPEED
|
100Km/h
|
|
BODY & EQUIPMENT
|
|
BODY & FRAME
|
Fiberglass front and rear header panels︱one piece fiberglass roof
|
|
AIR CONDITIONING
|
Kingtec KT-X-D
|
|
WINDSCREEN
|
Single-piece Windscreen
|
|
MIRRORS
|
Heated / Electric operated, drivers side flat
|
|
OPTIONS
|
Enclosed drivers sun blind to front︱LCD monitors, JVC DVD, Alpine amplifier and drivers microphone on flexible arm︱Surveillance System︱Sliding or hopper windows︱painting in fleet colours︱Refrigerator
|
|
SEATING
|
47 + 1 + 1
|
The specification varies to the requirement of actual order, the drivetrain is subject to change upon requests.
| Chassis model : |
|
| Engine Model: |
|
| Engine manufacturer: |
|
| Engine power : |
|
| Dimension(mm) : |
|
| Volume(m3) : |
|
| Wheelbase(mm) : |
|
| No. of axles : |
|
| Tire size/number : |
|
| Total mass(kg) : |
|
| Loaded mass(kg) : |
|
| Curb weight(kg) : |
|
