Coaches:

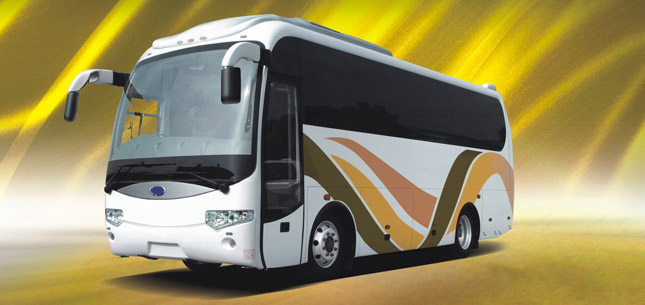

JXK6790CR
This little model is designed in a significant way to define the enhanced maneuverability, highest levels of safety and the good blending appearance. The internal ornaments are attractive and elegant with reasonable layout
CHASSIS
|
DIMENSIONS
|
7995 x 2460 x 3365
|
ENGINE
|
YC4G180-20︱4G220-20
|
TRANSMISSION
|
QJ 705, 5 speed
|
SUSPENSION
|
2 + 4 air bellows
|
BRAKES
|
Wabco ABS︱dual circuit air system︱Drum Brake
|
TYRES & WHEELS
|
8R22.5 Tubeless︱6×22.5 steel rim
|
FULE CAPACITY
|
180L,Steel
|
ALTERNATOR
|
28V 150A
|
BATTERIES
|
12V-150Ah×2
|
GVM
|
10000KG
|
MAX. SPEED
|
110Km/h
|
BODY & EQUIPMENT
|
BODY & FRAME
|
Fiberglass front and rear header panels︱one piece fiberglass roof
|
AIR CONDITIONING
|
KINGTEC KT-Ⅱ-D
|
WINDSCREEN
|
Single-piece Windscreen
|
MIRRORS
|
Heated / Electric operated, drivers side flat
|
OPTIONS
|
Enclosed drivers sun blind to front︱LCD monitors, JVC DVD, Alpine amplifier and drivers microphone on flexible arm︱Rear radar sensor & VDT︱Sliding or hopper windows︱painting in fleet colours
|
SEATING
|
29 + 1 + 1
|
The specification varies to the requirement of actual order, the drivetrain is subject to change upon requests.
