Aluminum oil tank:

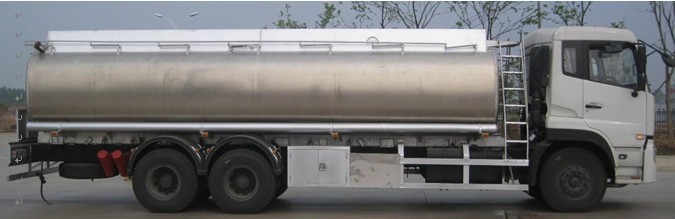

GW5250GYYDF6 Aluminum oil tank
1, Specification of Aluminum oil tank
|
No.
|
Item
|
|
Specification
|
Remarks
|
|
1
|
Outside dimension of tank (mm)
|
Length
|
8100
|
For oil transportation, density: 700 kg/m3
|
|
Long axle
|
2230
|
|
Short alxe
|
1560
|
|
Valid volume (m3)
|
23.1
|
2, Main configuration of the oil tank
|
No.
|
Name
|
Brand
|
Model
|
Manufacturer
|
|
1
|
Manhole cover (aluminummanholering)
|
CIVACON
|
EURO100-1S
|
OPW
|
|
2
|
Pneumatic bottom valve
|
CIVACON
|
EURO100-1S
|
OPW
|
|
3
|
API standard quick connector
|
CIVACON
|
861BA
|
OPW
|
|
4
|
API adjustable joints
|
CIVACON
|
876-AL4030
|
OPW
|
|
5
|
API dust cover forconnector
|
CIVACON
|
875-AL40
|
OPW
|
|
6
|
Oil & gas recovery valves
|
CIVACON
|
1985SV
|
OPW
|
|
7
|
Recovery Quick Connector
|
CIVACON
|
611T-AL40-NPT
|
OPW
|
|
8
|
Oil & gas Recovery Quick ConnectorPlug
|
CIVACON
|
1711T
|
OPW
|
|
9
|
Anti overflowprobe
|
CIVACON
|
1110-007
|
OPW
|
|
10
|
The anti-overflow probe socket (with grounding bolt)
|
CIVACON
|
4102-4102
|
OPW
|
|
11
|
Pneumatic control valve
|
CIVACON
|
SCP-2
|
OPW
|
|
12
|
The sidepanelsvent valve
|
CIVACON
|
1985SV
|
OPW
|
