Coaches:

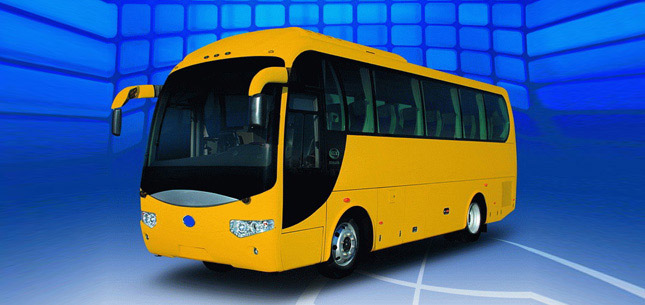

JXK6850CR
The midi coach features both RHD & LHD in which are popular for Australia and Latin America with seating capacity up to 33, the applied drivetrains vary upon the request, as well as the manual or automatic shift..
|
CHASSIS
|
|
DIMENSIONS
|
8500 x 2460 x 3440
|
|
ENGINE
|
ISBe E4185︱ISB E5185
|
|
TRANSMISSION
|
Allison T270R 6 Speed (with retarder)
|
|
SUSPENSION
|
Air suspension of 2 + 4 air bellows︱raise︱lower and kneel
|
|
BRAKES
|
Wabco ABS︱dual circuit air system
|
|
TYRES & WHEELS
|
255/70R22.5 Double Coin Tubeless | Polished SAI Aluminum Rims︱Chrome Wheel Nut Covers
|
|
FULE CAPACITY
|
170L
|
|
ALTERNATOR
|
28V 140A
|
|
BATTERIES
|
12v-150ah x 2
|
|
GVM
|
|
MAX. SPEED
|
100Km/h
|
|
BODY & EQUIPMENT
|
|
BODY & FRAME
|
Fiberglass front and rear header panels︱one piece fiberglass roof︱Australian Galvanized steel chassis & 50x50 body frame
|
|
AIR CONDITIONING
|
Carrier AC-353II New Gen 4 A/C unit with standard motor & bock 560cc compressor.
|
|
WINDSCREEN
|
Single-piece front windscreen︱rear windscreen N/A
|
|
MIRRORS
|
Heated / Electric operated, drivers side flat
|
|
OPTIONS
|
Electronic destination signs, front, side and rear︱Enclosed drivers sun blind to front︱LCD monitors, JVC DVD, Alpine amplifier and drivers microphone on flexible arm︱Rear reversing camera, radar sensor & VDT︱VDO tachograph︱Sliding or hopper windows︱painting in fleet colours︱Wheelchair loader
|
|
SEATING
|
33+1+ 1
|
The specification varies to the requirement of actual order, the drivetrain is subject to change upon requests.
| Chassis model : |
|
| Engine Model: |
|
| Engine manufacturer: |
|
| Engine power : |
|
| Dimension(mm) : |
|
| Volume(m3) : |
|
| Wheelbase(mm) : |
|
| No. of axles : |
|
| Tire size/number : |
|
| Total mass(kg) : |
|
| Loaded mass(kg) : |
|
| Curb weight(kg) : |
|
