City Buses:

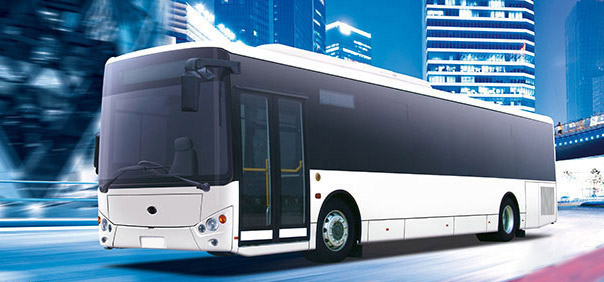

JXK6120
This model is the ultra low floor urban transporter designed to perform under the highest demands, whether in peak city traffic or out to the suburbs, Built with serviceability and convenience in mind, rates practicality at the top of its list if many standard features.
|
CHASSIS
|
|
DIMENSIONS
|
12400 x 2485 x 3301
|
|
ENGINE
|
Cummins ISB6.7 E5 225H
|
|
TRANSMISSION
|
EATON EH-8E306A-X 6 speed Hybrid transmission with electric clutch
|
|
SUSPENSION
|
ZF suspension with ECAS︱2 + 4 air bellows︱raise︱lower and kneel
|
|
BRAKES
|
Wabco ABS︱Dual circuit air system︱Disc brake
|
|
TYRES & WHEELS
|
275/70R22.5 Michelin︱Polished Alcoa Aluminium rim
|
|
FULE CAPACITY
|
250L
|
|
ALTERNATOR
|
28V 140A x 2
|
|
BATTERIES
|
12v-180ah x 2
|
|
MAX. SPEED
|
100Km/h
|
|
BODY & EQUIPMENT
|
|
BODY & FRAME
|
Fiberglass front and rear header panels︱one piece fiberglass roof︱Australian SuperGal steel frame︱stainless steel body
|
|
AIR CONDITIONING
|
Carrier AC-353 111 NEW GEN 4 A/C unit with brushless motors, O5G carrier compressor with an air operated belt tensioner
|
|
WINDSCREEN
|
Single-piece Windscreen︱rear windscreen N/A
|
|
MIRRORS
|
Heated / Electric operated, drivers side flat
|
|
OPTIONS
|
Hybrid power system︱Electronic destination signs, front, side and rear︱Enclosed drivers sun blind to front︱LCD monitors, JVC DVD︱Sliding or hopper windows︱painting in fleet colours
|
|
SEATING
|
35+6+1
|
The specification varies to the requirement of actual order, the drivetrain is subject to change upon requests.
| Chassis model : |
|
| Engine Model: |
|
| Engine manufacturer: |
|
| Engine power : |
|
| Dimension(mm) : |
|
| Volume(m3) : |
|
| Wheelbase(mm) : |
|
| No. of axles : |
|
| Tire size/number : |
|
| Total mass(kg) : |
|
| Loaded mass(kg) : |
|
| Curb weight(kg) : |
|
