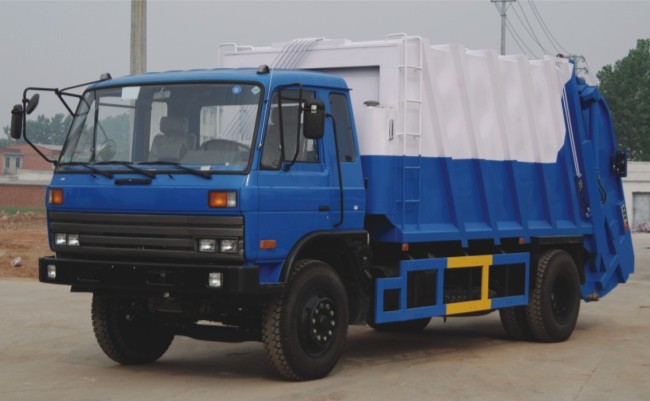

Garbage Collecting Truck:
GW5150ZYSE 4×2
Garbage compactor specifications
|
Rate volume of garbage tank（m3）
|
14
|
|
Material of garbage tank
|
Bottom thickness 3mm(550 high strengthen steel)
|
|
Bottom thickness 4mm(SUS304 stainless steel)
|
|
Compressed density
|
0.6-0.7 t/m³
|
|
Lift time of filling equipment (S)
|
6-9
|
|
Loading time (S)
|
30
|
|
Un-loading time
|
≤30
|
|
System pressure (Mpa)
|
16Mpa
|
|
Multi-way valve
|
HC-D6/5（Italy）
|
|
Gear pumps
|
CBG2063-BIR
|
|
Cylinders (Bore/Stroke mm)
|
Shoveling cylinder:φ150/1175
|
|
Sliding cylinder:φ90/640
|
|
Scraper cylinder:φ80/490
|
|
Filling equipment lifting cylinder:φ80/610
|
|
The overturn bracket cylinder: φ80/245
|
|
Trash volume options (L)
|
120L/240L/
|
|
Curb of garbage tank (kg)
|
≤5200Kg
|
| Chassis model : |
EQ1141G7DJ |
| Engine Model: |
EQD210-20 |
| Engine manufacturer: |
Dongfeng Cummins Engine Co., Ltd |
| Engine power : |
155Kw |
| Dimension(mm) : |
8480×2470×3000 |
| Volume(m3) : |
|
| Wheelbase(mm) : |
4500, 4200 |
| No. of axles : |
2 |
| Tire size/number : |
6 |
| Total mass(kg) : |
14805 |
| Loaded mass(kg) : |
5180 |
| Curb weight(kg) : |
9430 |
