New Energy:

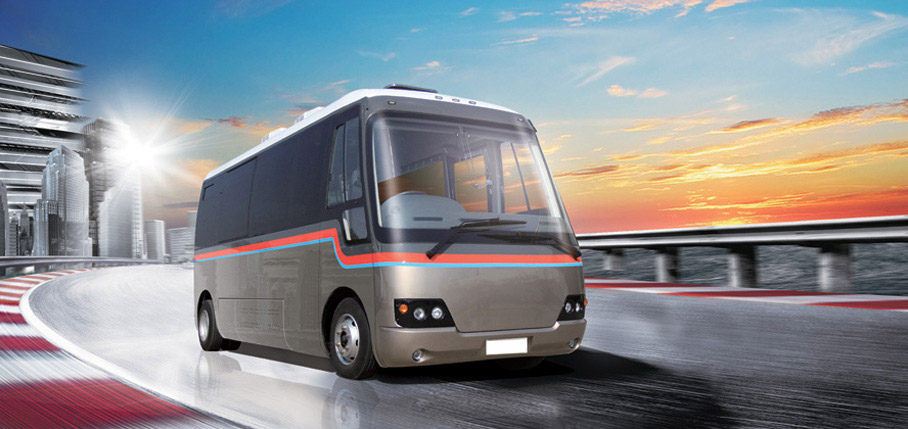

JXK6601
The latest models is co-designed by American and Chinese engineers,100% electric driven, it runs on battery power with regenerative braking system, and features ultra-low noise air compressors, integrated controls and easily replaceable modular- designed batteries
|
CHASSIS
|
|
DIMENSIONS
|
6129 x 2182 x 3125
|
|
MOTOR(IPM)
|
110KW
|
|
BATTERY PACK (Lithium-ion)
|
97KWH︱12V-200Ah×2
|
|
RANGE
|
131 - 209 Km
|
|
SUSPENSION
|
Air suspension with 2+2 air bellows
|
|
Axles
|
Front IFS and purpose-built rear axle
|
|
BRAKES
|
Wabco ABS︱dual circuit air system︱Disc brake
|
|
TYRES & WHEELS
|
215/75R17.5-16PR Double Coin︱Standard Steel Rims
|
|
GVW
|
9,000KG
|
|
MAX. SPEED
|
100Km/h
|
|
BODY & EQUIPMENT
|
|
BODY & FRAME
|
Fiberglass front and rear header panels︱one piece fiberglass roof︱Australian Supergal tube steel
|
|
AIR CONDITIONING
|
Kingtec, Dual Mode
|
|
WINDSCREEN
|
Single-piece Windscreen︱rear windscreen dark tinted & tempered side glass
|
|
MIRRORS
|
Heated / Electric operated, flat mirror at driver side
|
|
OPTIONS
|
Electronic destination sign︱Enclosed driver sun blind to front︱LCD monitors︱Wired microphone for driver, wireless for escort︱Sliding or hopper windows︱painting in fleet colours︱Inner luggage rack
|
|
SEATING
|
17+1
|
The specification varies to the requirement of actual order, the drivetrain is subject to change upon requests
