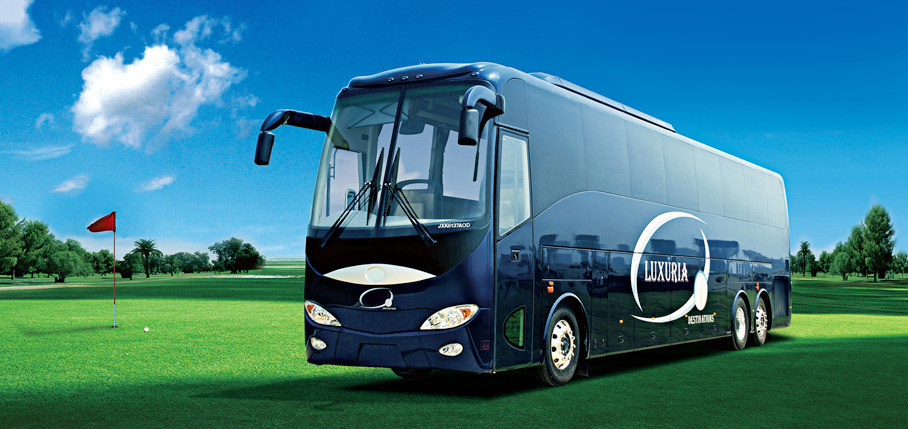

Our 13.7m luxury caravan possesses many highlights, one highlight is this caravan equipped the most modern kitchenette, fridge and so on; second is the "huge" appearance, with 13.7-meter long, 2.5-meter wide and nearly 4-meter high, this enormous luxury caravan also has a huge reserved inner space; as well as the caravan design is human-focused and paid lots attention to customer satisfaction.
|
CHASSIS
|
|
DIMENSIONS
|
13700 x 2550 x 3830
|
|
ENGINE
|
Cummins ISM410 E5
|
|
TRANSMISSION
|
Allison T450R transmission
|
|
SUSPENSION
|
ZF suspension with ECAS︱2 + 4 + 2 air bellows︱raise︱lower and kneel
|
|
BRAKES
|
Wabco ABS six ways
|
|
TYRES & WHEELS
|
295/80R22.5 Double Coin Tubeless︱Polished Alcoa Aluminum Rims︱Chrome Wheel Nut Covers
|
|
FULE CAPACITY
|
400L located in front of drive axle or 800L located behind front axle
|
|
ALTERNATOR
|
28V 140A
|
|
BATTERIES
|
12v-200ah x 2
|
|
GVM
|
24000KG
|
|
MAX. SPEED
|
100Km/h
|
|
BODY & EQUIPMENT
|
|
BODY & FRAME
|
Fiberglass front and rear header panels︱one piece fiberglass roof︱Australian Galvanized steel chassis & 50x50 body frames
|
|
AIR CONDITIONING
|
Kingtec or Carrier or Thermo-king
|
|
WINDSCREEN
|
Double-piece Windscreen︱rear windscreen N/A
|
|
MIRRORS
|
Heated / Electric operated, drivers side flat
|
|
OPTIONS
|
Enclosed drivers sun blind to front︱LCD monitors, JVC DVD︱Sliding or hopper windows︱painting in fleet colours︱kitchen︱refrigerator | The specification varies to the requirement of actual order, could be changed upon requests
|
The specification varies to the requirement of actual order, the drivetrain is subject to change upon requests.
| Chassis model : |
|
| Engine Model: |
|
| Engine manufacturer: |
|
| Engine power : |
|
| Dimension(mm) : |
|
| Volume(m3) : |
|
| Wheelbase(mm) : |
|
| No. of axles : |
|
| Tire size/number : |
|
| Total mass(kg) : |
|
| Loaded mass(kg) : |
|
| Curb weight(kg) : |
|
