City Buses:

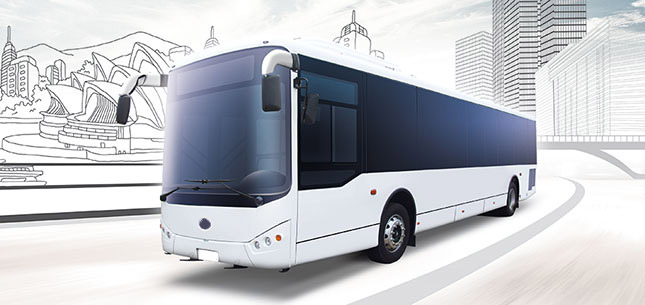

JXK6116
The classic model from Europe that enables to carry more than 100 passengers for public transit, the reserved area for wheelchair and ramp are considered to facilitate passengers.
|
CHASSIS
|
|
DIMENSIONS
|
11600 or 11190 or 12500 x 2495 x 3190
|
|
ENGINE
|
Cummins ISB 07 EX 240
|
|
TRANSMISSION
|
Allison T270R 5 speed.
|
|
SUSPENSION
|
Air suspension with ECAS of 2 + 4 air bellows︱raise︱lower and kneel
|
|
BRAKES
|
Wabco ABS︱dual circuit air system︱Disc brake
|
|
TYRES & WHEELS
|
275/70R22.5 Double Coin Tubeless︱Standard Steel Rims
|
|
FULE CAPACITY
|
220L
|
|
ALTERNATOR
|
28V 140A
|
|
BATTERIES
|
12v-150ah x 2
|
|
GVM
|
16800KG
|
|
MAX. SPEED
|
100Km/h
|
|
BODY & EQUIPMENT
|
|
BODY & FRAME
|
Fiberglass front and rear header panels︱one piece fiberglass roof︱40mm x 40mm Australian SuperGal steel frame
|
|
AIR CONDITIONING
|
Kingtec︱TK LRT1004︱CoachAir SRLXT with additional alternator
|
|
WINDSCREEN
|
Single-piece Windscreen︱rear windscreen N/A
|
|
MIRRORS
|
Heated / Electric operated, drivers side flat
|
|
OPTIONS
|
Hybrid power system︱CNG power system︱Full electrical power system ︱Electronic destination signs, front, side and rear︱Enclosed drivers sun blind to front︱LCD monitors, JVC DVD, Alpine amplifier and drivers microphone on flexible arm︱Surveillance System︱Sliding or hopper windows︱painting in fleet colours︱Coinbox︱
|
|
SEATING
|
41+ 1
|
The specification varies to the requirement of actual order, the drivetrain is subject to change upon requests.
